Venturi Scrubber Air Pollution Control

Venturi Scrubber Air Pollution Control: Capture Dust and Pollutants from Your Exhaust Gas

Many industrial processes release gas that carries dust, fumes or fine particles. If this gas goes straight out of the stack, those pollutants end up in the air that workers and neighbours breathe. The Venturi Scrubber from EOEnergy Pvt. Ltd. is an air pollution control device that cleans industrial exhaust gas using a spray of liquid. It is designed to capture fine dust and, depending on the design, certain gases, so the gas leaving your stack is cleaner.

What Is a Venturi Scrubber?

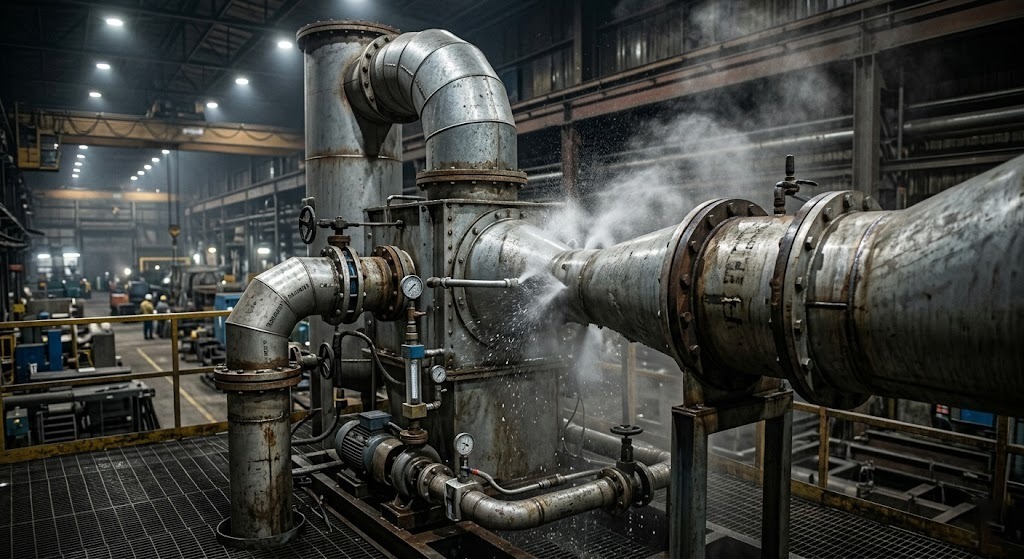

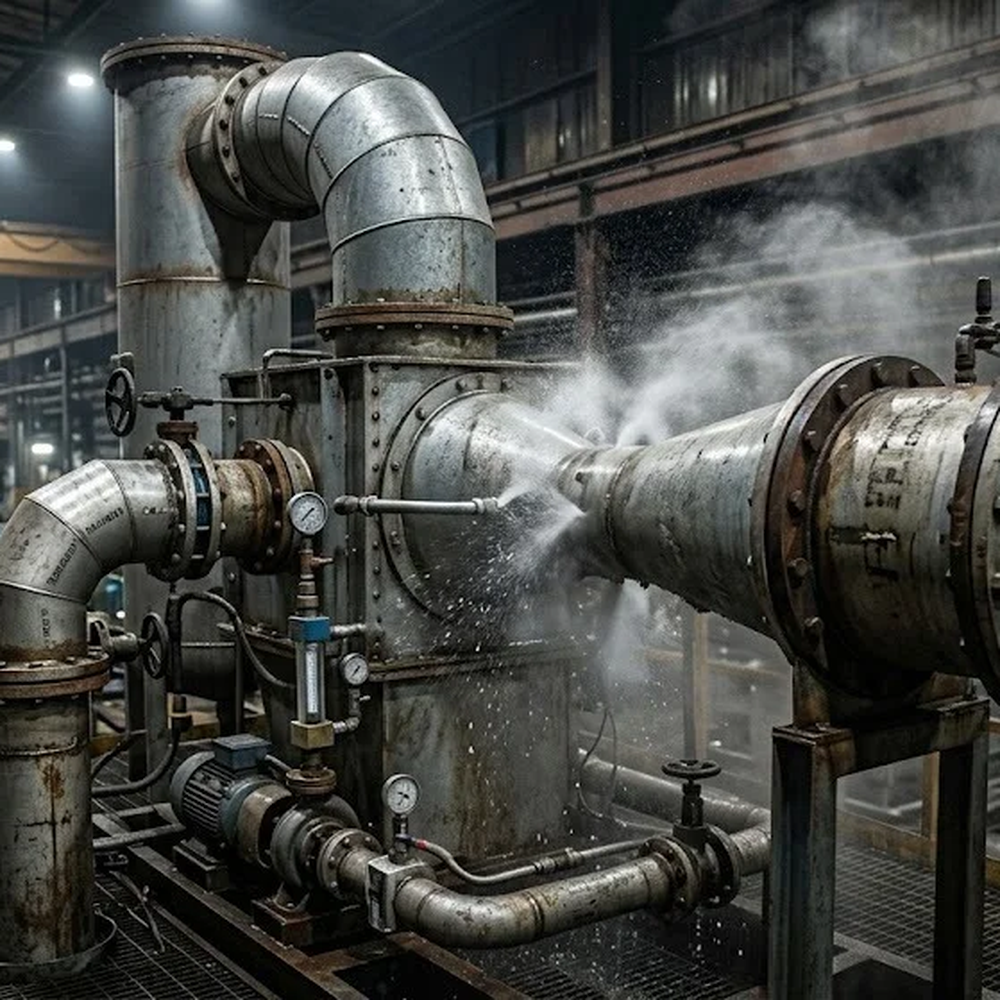

A venturi scrubber is a type of wet scrubber. A wet scrubber cleans gas by bringing it into contact with a liquid, usually water or a water-based solution. In a venturi scrubber, the dirty gas is forced through a narrow section called the throat. The gas speeds up sharply in the throat, and a spray of liquid is introduced at this point. The fast-moving gas breaks the liquid into very fine droplets, and these droplets collide with and capture the dust and particles in the gas.

After the throat, the gas slows down and passes into a separator, where the droplets, now carrying the captured particles, are separated from the cleaned gas. The cleaned gas continues to the stack, and the used liquid is collected for treatment or reuse.

How Does It Work?

The process has a few simple steps. First, the dirty gas enters the scrubber through an inlet duct. Second, the gas flows into the venturi throat, where its speed increases. Third, scrubbing liquid is sprayed into the gas at the throat, and the strong mixing in this zone lets droplets capture dust and fine particles. Fourth, the mixture enters a separator, where the droplets are removed from the gas. Finally, the cleaned gas leaves through the stack while the liquid collects in a tank or sump, from where it can be pumped back for reuse or sent for treatment.

If the gas also contains acidic or soluble gases, a suitable scrubbing liquid can help absorb them, depending on the design and the gas involved.

Why Use a Venturi Scrubber?

Different pollution control devices suit different gases. A venturi scrubber is especially useful in situations where other devices can struggle.

It works well with fine dust, which is hard to catch with simple settling devices. It can handle hot gas, because the liquid cools the gas as it works. It can suit moist or sticky dust and fumes that might clog a dry filter. It also removes the risk of dry dust catching fire or exploding in some applications, because the dust is wetted. And it can combine dust removal with the capture of certain gases in one unit.

Whether it is the right choice for your plant depends on your gas and your needs, so our team can help you compare it with other options, such as bag filters, electrostatic precipitators and thermal oxidizers.

Key Benefits

Captures fine particles: The fast gas and fine droplets are effective at catching small dust particles.

Cools hot gas: Contact with the liquid lowers gas temperature, depending on the design.

Handles wet and sticky gas: Suited to gas streams that would clog dry filters.

Can capture some gases: With the right scrubbing liquid, certain acidic or soluble gases can be absorbed.

Simple, sturdy design: Few moving parts inside the scrubber itself, which supports reliable operation.

Liquid reuse: Recirculation reduces fresh water use, depending on the design.

Custom built: Sized and made from materials chosen to suit your gas, liquid and space.

Where Can It Be Used?

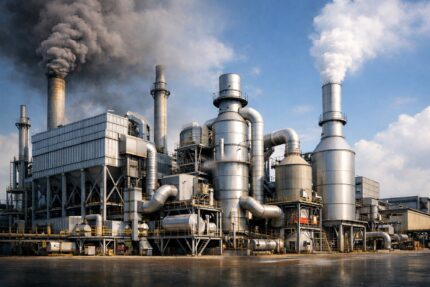

Venturi scrubbers are used in many industries, including boilers and furnaces, foundries and metal processing, chemical and fertiliser plants, pharmaceutical units, cement, lime and mineral processing, fertiliser and acid handling, food and agro-processing, paper mills, waste and biomass burning units, incinerators and crematoria, and many other processes where exhaust gas carries dust or fumes. Any plant that needs to clean exhaust gas before release can consider one.

Things to Keep in Mind

A venturi scrubber uses liquid, so it needs a supply of water or scrubbing liquid and a way to handle the used liquid. The captured dust ends up in the liquid as sludge, which must be settled, removed and disposed of properly. Because the gas is pushed through a narrow throat, the scrubber needs a fan strong enough to overcome the resistance. The materials must also suit the gas and liquid, especially if the gas is acidic. We can guide you on all of these points when selecting the scrubber.

Scrubber and Monitoring Together

Controlling emissions and measuring them work best together. After a scrubber is installed, our Continuous Emission Monitoring Station can measure what leaves the stack, showing whether the scrubber is doing its job and helping you keep records. If you also want to track the air around your site, our Continuous Ambient Air Quality Monitoring Station and Suspended Particulate Matter (SPM) Analyzer can help.

Choosing the Right Scrubber

The right scrubber depends on your process. Please keep these details ready: the type of plant and process, the gas flow and temperature, the type and amount of dust or gases in the gas, any rules or limits that apply to your plant, the water and power available, and the space for installation. Our team can guide you on the right design, size and materials.

Installation and Maintenance

For reliable performance, the scrubber should be installed and connected to the gas duct, liquid supply and drain according to the manufacturer’s guidance. Regular checks help keep it working well. Spray nozzles should be kept clear, the pump and liquid circuit checked, sludge removed regularly, and the unit inspected for wear and corrosion. Our team can guide you on installation, and support is available for servicing and operating questions afterwards.

Why Choose EOEnergy?

EOEnergy Pvt. Ltd. is a manufacturer and supplier of power solution and environmental equipment, including generators, retrofit emission control devices and dual fuel kits, along with a range of air pollution control devices, flowmeters and monitoring systems. This lets us support your emission control and monitoring needs from one source.

Frequently Asked Questions

1. What is a venturi scrubber?
It is an air pollution control device that cleans exhaust gas by passing it through a narrow throat while spraying liquid into it, so that droplets capture dust and fine particles.

2. What pollutants can it remove?
It is mainly used for dust and fine particles. Depending on the design and the scrubbing liquid, it can also help remove certain acidic or soluble gases.

3. Does it need water?
Yes. A venturi scrubber uses water or another scrubbing liquid. The liquid is usually collected and reused, and the captured dust ends up as sludge that must be removed.

4. How is it different from a bag filter?
A bag filter is a dry device that traps dust on fabric. A venturi scrubber is a wet device that captures dust with liquid droplets. The better choice depends on your gas and dust, so our team can help you compare them.

5. How can I check that it is working?
Emission readings from the stack show how well the scrubber is performing. Our Continuous Emission Monitoring Station can provide this data.
