Ashok Leyland Generator Review: Model, Specification & Price List

With the rich industrial experience & deep knowledge in generator manufacturing, EO Energy provides a wide range of Ashok Leyland generator & power backup Genset.

Note: We also deal with used Genset & provide rental services. Click on the below link to visit specific pages.

Read this page if you are interested in buying Ashok Leyland generator, its various model, specification & price list.

But before getting more information about Ashok Leyland Genset, first here a small overview of the Ashok Leyland group.

Ashok Leyland genset

Ashok Leyland is one of the largest Indian automobile company, which is located in Chennai, and founded in the year of 1948. This company is owned by Hinduja Group.

This organization is the second-largest manufacturer in the commercial vehicle segment in India. When we look from the worldwide, this organization is the second-largest in bus manufacture and the tenth-largest in truck manufacturing. This all the production comes from different manufacturing units.

In the automobile sector, this company has a 32.1% market share according to the year of 2016 data. Worldwide Ashok Leyland is the market leader in the bus segment. The production of the entire truck range, from 7.5 to 49 tons.

Apart from the vehicle segments, the Ashok Leyland power generator is one of the best products in the power sector.

Ashok Leyland (Leypower) Generator

Ashok Leyland (Leypower) is one well know diesel generator brand in India. Leypower gives a fully integrated power system, with state of the art technology in engine.

This ready to use portable Genset follows the latest CPCB-2 norms in India and also built to follow international norms.

Ashok Leyland group feels the pride to serve more than 150,000 Genset over the last ten years.

This incredible confidence has made Ashok Leyland enhance the offering wide range of Diesel Generator from 5 kVA to 2500 kVA at affordable prices.

The Genset comes from Ashok Leyland are, highly fuel-efficient, aesthetically designed, environment-friendly, very low operating cost and with a soundproof enclosure.

Key Features of Ashok Leyland Diesel Generator

  • Reliable, Robust & Rugged engines designed to deliver continuously in an arduous environment
  • Better Block Loading Capability
  • Compact engine – Engineered for Optimized Power Solutions
  • Low ownership cost, oil & fuel consumption
  • Continuous duty power rating
  • Minimal vibrations and lower noise levels
  • Easy Serviceability & Repairability
  • Standardized Design for a complete range
  • Wide after-sales & parts support

Top Ashok Leyland Diesel Generator Models

Available DG Set between 5 to 30 kVA

Genset ModelRating
GENSET MODEL LP5DKVA Rating 5
GENSET MODEL LP15D1KVA Rating 15
GENSET MODEL LP20D1KVA Rating 20
GENSET MODEL LP25D1KVA Rating 25
GENSET MODEL LP30DKVA Rating 30

Between 35 to 80 KVA

Genset ModelRating
GENSET MODEL LP35D/LP40DKVA Rating 35/40
GENSET MODEL LP50/LP62.5DKVA Rating 50/62.5
GENSET MODEL LP62.5D1KVA Rating 62.5
GENSET MODEL LP75D/LP 82.5DKVA Rating 75/82.5

Between 100 to 250 KVA

Genset ModelRating
GENSET MODEL LP100DKVA Rating 100
GENSET MODEL LP125DKVA Rating 125
GENSET MODEL LP160KVA Rating 160
GENSET MODEL LP250DKVA Rating 250

Between 320 to 2500 KVA

Genset modelRating
GENSET MODEL LP 320KVA Rating 320
GENSET MODEL LP 350KVA Rating 350
GENSET MODEL LP 380KVA Rating 380
GENSET MODEL LP 400KVA Rating 400
GENSET MODEL LP 415KVA Rating 415
GENSET MODEL LP 450KVA Rating 450
GENSET MODEL LP 500KVA Rating 500
GENSET MODEL LP 600KVA Rating 600
GENSET MODEL LP 650KVA Rating 650
GENSET MODEL LP 750KVA Rating 750
GENSET MODEL LP 1010KVA Rating 1010
GENSET MODEL LP 1250KVA Rating 1250
GENSET MODEL LP 1500KVA Rating 1500
GENSET MODEL LP 1750KVA Rating 1750
GENSET MODEL LP 2000KVA Rating 2000
GENSET MODEL LP 2250KVA Rating 2250
GENSET MODEL LP 2500KVA Rating 2500

Leyopower DG Set Specification

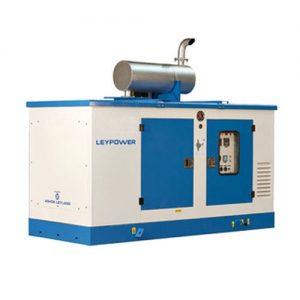

1. Ashok Leyland 125 KVA Generator

ashok leyland 125 kVa genset
Ashok Leyland 125 KVA Genset
Power Rating* (kV)125
Electric Power (kWe)100
Rated Current (Amp)173.91
DG Size- L x W (mm)3300*1250
H (Including Base) (mm)1565
DG Weight approx. (Kg)1876
Fuel Tank Capacity (Ltr)200
Battery Capacity (AH)90
System DC Voltage (Volt)12
Engine Specification
Engine ModelAL6DTIDG2
Engine Rated kW/Engine Rated HP116/155.5
AspirationTA
No. of cylinders & configuration6, Inline
Bore x stroke (mm)104*113
Displacement (Ltr)5.76
Compression ratio16.5 ± 0.5 : 1
Fuel Consumption** (Ltr/Hr)21.6
Lube Oil Capacity approx. (Ltr)17.5
Coolant Capacity approx. (Ltr)20
Governing ClassAO
Governer UsedElectronic
Oil Change Period600 Hrs or 1 Year
Lube Oil specificationGulf Leypower XLL Diesel Engine Oil
AlternatorBrushless, Single Bearing, IP23, Class H Insulated, 50 Hz, Voltage Regulation + 0.5%, 0.8PF Lag

Ashok Leyland 1010 KVA Generator

ashok leyland 1010 kVa genset
Ashok Leyland 1010 KVA Genset
Rating (KVA)1010
Rated Current (Amp)1404
The dimension of OPEN DG set (L x W x H)4315 x 2000 x 2528
The dimension of DG set with Acoustic (L x W x H)8004 x 2825 x 3654
DG Weight(Kg)8150
Engine Specification
Engine Model12M26D968E200
AspirationTA
Engine Rpm1500
No Of Strokes4
Gross Engine OutPut (Kwm)880
Gross Engine OutPut (Bhp)1180
Displacement31.8
No Of Cylinders & Configuration12 & Vee
Bore X Stroke (Mm)150 x 150
Compression Ratio15.7:1
Piston Speed (M/Sec)7.5
Bump (Kpa)2214
Lube Oil Capacity Max (Ltrs)113
Coolant Capacity (Engine + Rad)(Ltrs)191

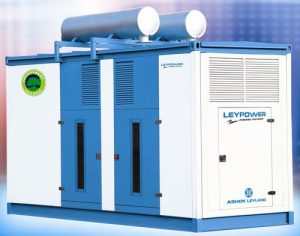

Ashok Leyland 2500 KVA Generator

ashok leyland 2500 kVa genset
Ashok Leyland 2500 KVA Genset
Rating (KVA)2500
Rated Current (Amp)3475
The dimension of OPEN DG set (L x W x Hmm)6100mm x 3273mm x 3691mm
The dimension of DG set with Acoustic (L x W x Hmm)Approx. 11450mm x 3800mm x 4600mm
DG Weight(Kg)Approx. 23500Kg
Engine Specification
Engine Model12M55D2750/5
AspirationTA
Engine Rpm15
No of Strokes4
Gross Engine OutPut (Kwm)2200
Gross Engine OutPut (Bhp)2949
Displacement65.65
No of Cylinders & Configuration12 & Vee
Bore X Stroke (Mm)180 x 215
Compression Ratio16.5:1
Piston Speed (M/Sec)10.75
BMEP (Kpa)2990
Lube Oil Capacity Max (Ltrs)480
Coolant Capacity (Engine + Rad) (Ltrs)306 + Rad

Summary

Without a doubt, Ashok Leyland generator is one of the best choices for your home or business power. We hope the information and specifications of the DG set will help you to find the best generator.

This Leypower Genset comes with many features, for example, better block loading capacity, compact engine quality, high-quality AMF panel, low oil & fuel consumption, continuous duty power rating, minimal vibration, and low noise pollution.

EO Energy is one of the prime wholesale trader, supplier, and distributor of Ashok Leyland Power generator.
